48V 20AH Electric Bicycle Lithium Battery for Panasonic Cell

Model

Triagnle down tube style

Battery Material

Li-ion

Nominal Voltage

48V

Rated Capicaty

20Ah

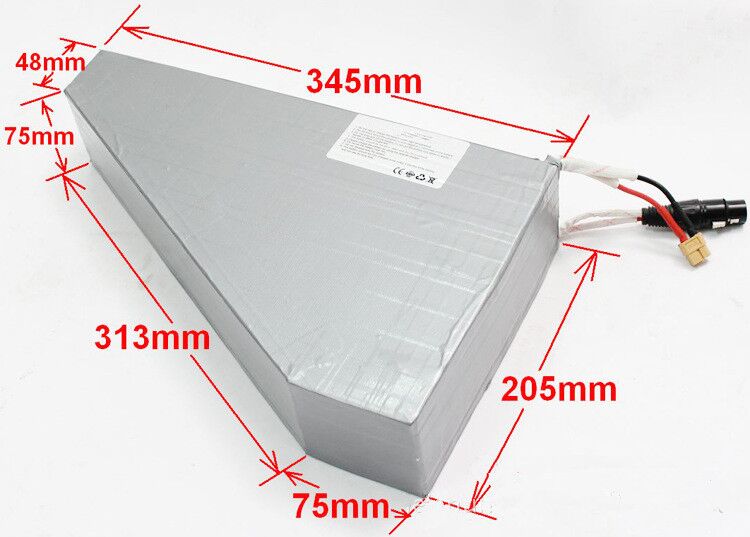

Pack Dimension(Type A)

70×205×345(mm)

Pack Dimension(Type B)

customized

Internal Impedance

≤100mΩ

Max Charge Voltage

54.6V

Max Charge Current

4A

Min Discharge Voltage

39V

Rated Discharge Current

20A

Max Discharge Current

30A

Charging Mode

CC/CV

Pack Weight

About 9.0kg

Over Current Protection

35A±3A

Cycle Life

800 times

Charge Temperature

0-45°C

Discharge Temperature

-20-55°C

Certificates

CE

Range with one charge

≥40km (Motor 700W)

Charger

AC Input

100-240V,50/60Hz

DC Output

55V 2A

Dimension

Charging Time

About 8h

Safe Demand

CCC CE

Wire Length

AC 1m  DC 1m

DC Pulg

Inside:+ Lateral:-
